Agni 5 Missile Specifications, Range, and Features Explained

India’s Agni 5 missile is one of the most advanced and powerful strategic weapons developed by the Defence Research and Development Organisation (DRDO). It is not just another ballistic missile in India’s arsenal—it is a sophisticated system that combines technology, strategy, and survivability to act as a credible nuclear deterrent. Since its successful trials and induction, Agni-5 has attracted global attention due to its long-range capabilities, modern features, and strategic importance.

In this article, we will explore the specifications, range, features, and strategic significance of Agni-5 in detail. By the end, you’ll have a clear understanding of why this missile is considered a cornerstone of India’s defence and deterrence posture.

1) Introduction to Agni-5

The Agni missile series is named after the Sanskrit word “Agni,” meaning fire. The program began in the 1980s under the Integrated Guided Missile Development Program (IGMDP) led by Dr. A.P.J. Abdul Kalam. Over the years, India successfully developed and deployed various versions: Agni-I, Agni-II, Agni-III, and Agni-IV, each with incremental improvements in range, payload, and accuracy.

Agni-5, however, represents a major leap. With a range estimated at 5,000 to 5,500 kilometers, it is India’s first long-range intercontinental ballistic missile (ICBM)-class system, capable of striking targets deep inside Asia and even parts of Europe. Unlike earlier models, Agni-5 incorporates canisterized launch technology, solid-fuel propulsion, and advanced navigation systems, making it one of the most reliable deterrent platforms India has ever produced.

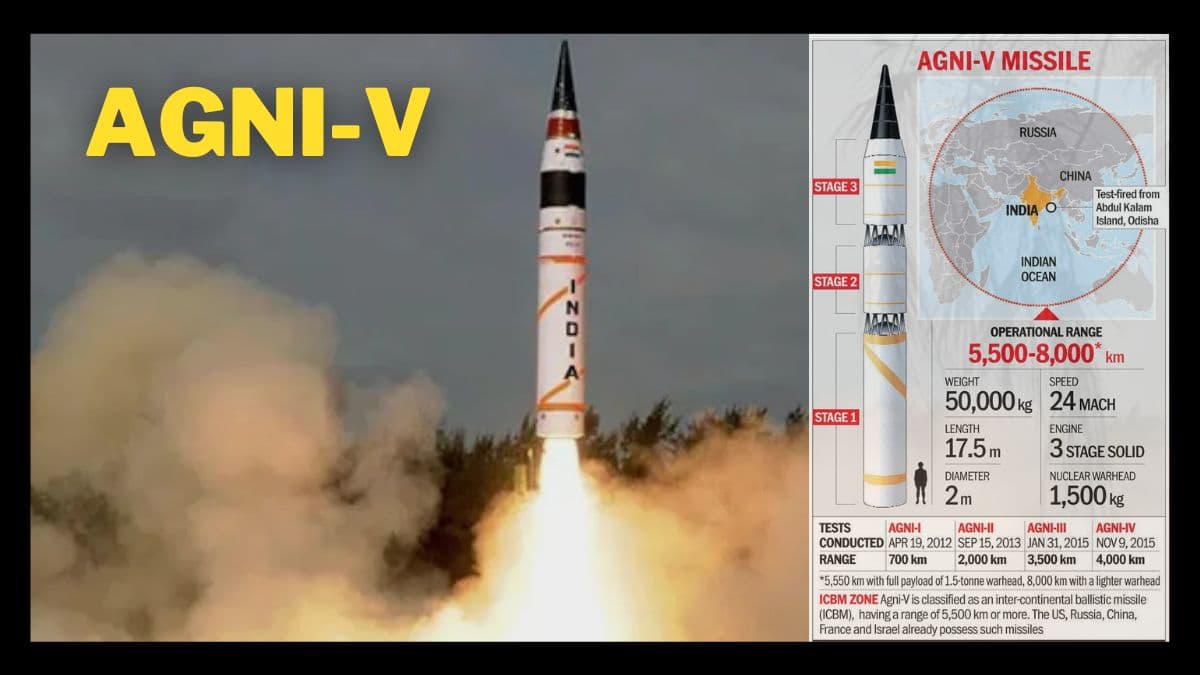

2) Agni-5 Missile Specifications

Let us break down the technical specifications of Agni-5 to understand its design and capability.

These specifications show that Agni-5 is not only powerful in terms of range and payload, but also highly survivable and accurate.

3) Range and Strike Capabilities

The most striking feature of Agni-5 is its range. Unlike Agni-III and Agni-IV, which were restricted to medium-range coverage, Agni-5 covers almost the entire Asian continent and extends into Europe.

a) Range Coverage

• China: Almost all of mainland China, including strategic hubs like Beijing, Shanghai, and Guangzhou, falls within Agni-5’s strike envelope.
• Pakistan: Every city and strategic installation is well within range.
• Other Asian Regions: Southeast Asia, Central Asia, and parts of the Middle East.
• Europe: Some Eastern European countries and parts of Russia.

This range allows India to project deterrence far beyond its borders, ensuring that no adversary can assume immunity based on geographic distance.

b) Strategic Importance of Range

• Ensures second-strike capability, meaning even if India is attacked first, it retains the ability to retaliate effectively.
• Allows target flexibility for deterrence, covering not just immediate neighbors but also faraway powers.
• Provides psychological deterrence, making adversaries think twice before engaging in aggression.

4) Propulsion System: Three-Stage Solid Fuel

Agni-5 uses a three-stage solid-fuel propulsion system, which makes it:

1. More Reliable – Solid fuels are stable and require less maintenance than liquid fuels.
2. Quick to Launch – Solid-fueled missiles can be launched at short notice.
3. Easier to Store – No need for immediate fueling prior to launch.

Each of the three stages provides thrust at critical phases of flight:

• First Stage: Lifts the missile off the TEL and provides maximum thrust.
• Second Stage: Optimizes trajectory and maintains acceleration.
• Third Stage: Fine-tunes speed and altitude before payload separation.

This system makes Agni-5 not only powerful but also operationally flexible in real-world deployment.

5) Canisterized Launch System

One of the revolutionary features of Agni-5 is its canisterized launch system. The missile is stored in a hermetically sealed canister, which is mounted on a 12×12 Transporter-Erector-Launcher (TEL).

Advantages of Canisterization:

• High Mobility: Can be transported across India’s road network, making it harder to detect.
• Quick Launch: From storage to launch in a few minutes.
• Environmental Protection: Shielded from dust, humidity, and heat, increasing shelf life.
• Survivability: Increases chances of a successful second strike in case of a surprise attack.

This feature alone makes Agni-5 a gamechanger, putting it at par with the world’s most advanced missile systems.

6) Guidance and Accuracy

Agni-5’s guidance system combines Inertial Navigation System (INS) with satellite navigation support.

• INS: Uses gyroscopes and accelerometers to calculate position and velocity.
• Satellite Support: Uses Indian Regional Navigation Satellite System (NavIC) and possibly GPS/GLONASS for course correction.
• Accuracy: Circular Error Probable (CEP) is estimated at <50 meters, meaning the missile can strike very close to its intended target.

Such accuracy makes Agni-5 suitable not just for deterrence but also for counterforce options if ever needed.

7) Warhead and Payload Capacity

Agni-5 is designed to carry up to 1,500 kg of payload. This can include:

• Single nuclear warhead (thermonuclear or fission-based).
• Conventional high-explosive warhead (for testing or special missions).
• MIRVs (Multiple Independently targetable Reentry Vehicles) – future upgrade.

MIRV Capability

MIRVs would allow Agni-5 to carry 3–10 warheads, each targeting a different city or installation. This capability dramatically increases deterrence because:

• A single missile can overwhelm enemy missile defenses.
• Multiple targets can be struck simultaneously.
• Fewer missiles are needed for credible deterrence.

India has tested MIRV technology with Agni-5 in recent years, signaling a major leap forward in its strategic capabilities.

8) Reentry Vehicle and Thermal Protection

When the warhead reenters Earth’s atmosphere at speeds exceeding Mach 20, it faces extreme heat and pressure. Agni-5’s reentry vehicle (RV) uses:

• Carbon-carbon composites for lightweight strength.
• Ablative heat shields that burn away slowly, carrying heat with them.
• Advanced aerodynamic design to maintain stability during hypersonic reentry.

This ensures the warhead survives reentry and reaches its target intact.

9) Agni-5 vs. Previous Agni Missiles

Clearly, Agni-5 outperforms earlier Agni variants in almost every category.

10) Strategic Role of Agni-5

Agni-5 is not just about specifications—it’s about strategic impact.

• Nuclear Deterrence: Ensures India can retaliate even after a nuclear strike.
• Counterweight to China: Balances China’s missile arsenal and strengthens India’s bargaining power.
• Survivability: Canisterized mobility makes it very difficult to neutralize in a first strike.
• Technological Prestige: Demonstrates India’s capability as a responsible nuclear power with advanced ICBM-class systems.

11) Global Comparisons

Agni-5 is often compared with other long-range missiles:

• China’s DF-31A: Range ~11,000 km, MIRV capable.
• USA’s Minuteman III: Range ~13,000 km, highly advanced MIRV system.
• Russia’s RS-24 Yars: Range ~12,000 km, modern mobile ICBM.

While Agni-5’s range is less than U.S. and Russian ICBMs, it is sufficient for India’s strategic needs under credible minimum deterrence. Its canisterized launch puts it closer in survivability to Russian and Chinese systems.

12) Recent Developments and Tests

• 2012–2024: Multiple successful test launches of Agni-5.
• 2024–2025: Reports confirm successful test of Agni-5 MIRV variant, placing India in an elite club of nations (USA, Russia, China).
• Operational Deployment: Now under the Strategic Forces Command (SFC), responsible for India’s nuclear arsenal.

13) Future Outlook

Agni-5 lays the foundation for even more advanced systems:

• Agni-6 (rumored): Range 8,000–10,000 km, MIRV/MaRV capable.
• Improved MIRVs: Better accuracy, penetration aids to bypass missile defenses.
• Integration with nuclear triad: Complements sea-based deterrent (Arihant-class submarines) and air-delivered weapons.

India’s focus remains on credible minimum deterrence, not an arms race. Agni-5 ensures that India’s deterrent is secure, survivable, and technologically advanced.

14) Conclusion – Agni 5 Missile

The Agni-5 missile is far more than just a long-range rocket—it is a strategic asset that strengthens India’s nuclear doctrine and deterrence posture. With a range of over 5,000 km, solid-fuel three-stage propulsion, advanced guidance, and canisterized launch, Agni-5 is a technological marvel that places India among the world’s leading missile powers.

Its features such as MIRV capability, mobility, accuracy, and survivability make it not just a weapon, but a strategic gamechanger that deters adversaries and ensures peace through strength.

As India continues to refine its missile technology, Agni-5 will remain the backbone of its nuclear deterrence, ensuring national security in an unpredictable global environment.
