In today’s world, a robust CCTV NVR system is a cornerstone of security for both homes and businesses. The heart of any modern CCTV NVR setup is the Network Video Recorder (NVR). But unboxing that NVR and a handful of cameras can be daunting. How do you transform these components into an intelligent, reliable security watchdog?

This definitive, step-by-step guide will walk you through the entire process of configuring your NVR system, from initial physical setup to advanced features like remote viewing and motion detection. Let’s build your fortress.

Table of Contents

1. Understanding Your NVR System: Core Components

Before you plug in a single cable, it’s crucial to understand the role of each piece in your CCTV puzzle. An NVR system is a network-based ecosystem, where each component has a specific job, working in harmony to capture, manage, store, and display your security footage. Think of it as a team, and you’re the coach setting the plays.

Let’s break down each team member:

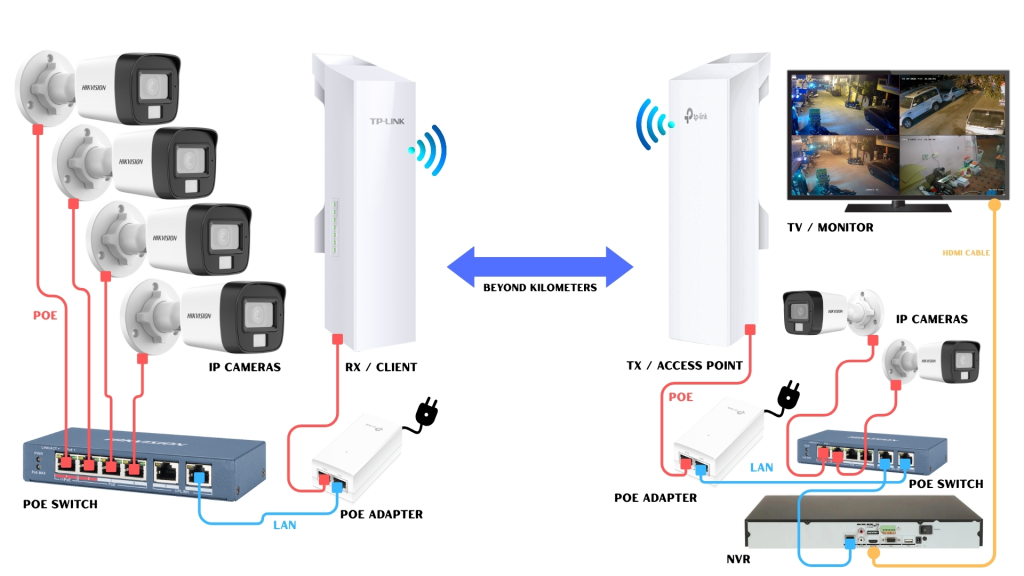

The Ultimate Guide: How to Configure CCTV NVR System for Maximum Security

1.1. The Brain: The Network Video Recorder (NVR)

What it is: This is the central processing unit of your entire security system. It’s a specialized computer dedicated to one task: handling video.
What it does:
- Communicates: It talks to your IP cameras over a network, receiving their digital video streams.
- Records: It takes these video streams and writes them to the internal hard drive.
- Decodes: It processes the video so you can watch live feeds and play back recordings on your monitor.
- Manages: It provides the interface for all configuration—motion detection, recording schedules, user accounts, and more.
Key Feature to Look For:
- PoE (Power over Ethernet) Ports: Many modern NVRs have a built-in PoE switch (e.g., 8, 16, or 32 ports). This is the ultimate convenience feature, allowing you to power and connect compatible cameras with a single cable. If your NVR lacks these, you’ll need a separate component (a PoE Switch).

1.2. The Eyes: IP Cameras (Internet Protocol Cameras)

What they are: These are the “sensors” of your system, placed at all strategic points you want to monitor.
What they do: Unlike older analog cameras, IP cameras are intelligent devices. Each camera has its own processor and compresses the video signal within the camera itself before sending the digital data to the NVR.
Key Types and Features:
- Bullet Cameras: Cylindrical and highly visible. Good for long-distance viewing and a deterrent effect.
- Dome Cameras: Circular and discreet. Often used indoors or under eaves; the dome makes it hard to tell which way the camera is pointing.
- PTZ (Pan-Tilt-Zoom) Cameras: Can be remotely controlled to pan (left/right), tilt (up/down), and zoom in optically. Ideal for covering large, open areas.
- Resolution: Measured in pixels (e.g., 1080p Full HD, 4K Ultra HD). Higher resolution means clearer images and better digital zoom.
- Night Vision: Typically using infrared (IR) LEDs, allowing the camera to see in total darkness (footage appears black and white).

1.3. The Nervous System: Cables, Switches, and Network

Ethernet Cables (Cat5e, Cat6, Cat6a): These are the lifelines of your system. For PoE systems, a single Ethernet cable runs from the NVR or PoE switch to each camera, delivering both Power and Data. This eliminates the need for separate power cables and outlets near each camera.
PoE Switch (Power over Ethernet Switch): If your NVR does not have built-in PoE ports, this device is essential. It acts as a central power and data hub for your cameras. You plug each camera into the switch, and the switch connects to your router and your NVR.
Router: The gateway to the outside world. It connects your local NVR system to the internet, which is mandatory for remote viewing on your phone or computer and for receiving push notifications.

1.4. The Memory: The Hard Drive (HDD)

What it is: This is the storage vault for all your recorded footage, installed directly inside the NVR.
Crucial Distinction:Do not use a standard desktop hard drive. You must use a hard drive designed for surveillance systems.
- Surveillance/Grade HDDs (e.g., WD Purple, Seagate SkyHawk): These are built for the 24/7, always-on workload of video recording. They are more reliable, handle the constant write cycles better, and often have features like vibration resistance to work well with multiple drives in one unit. Using a regular desktop drive will lead to premature failure and lost footage.
Storage Capacity: The amount of footage you can store depends on the drive’s size (e.g., 2TB, 6TB, 12TB), the number of cameras, their recording resolution/quality, and whether you record 24/7 or only on motion.

1.5. The Interface: Monitor, Mouse, and Power

Monitor: Required for the initial setup and for local viewing. You’ll connect it directly to the NVR’s HDMI or VGA output. After setup, you typically don’t need to leave it on.
USB Mouse: While some NVRs come with a remote, a USB mouse is the most intuitive way to navigate the on-screen display (OSD) menus, click through settings, and drag to create motion detection zones.
Power Adapters: The NVR itself needs to be plugged into a main power outlet. If you are using a standalone PoE switch, it will also have its own power adapter.

How the NVR System Ecosystem Works Together: A Simple Flow

Capture: An IP camera captures a video scene.
Process & Compress: The camera’s internal chip processes the video, compressing it into a manageable digital stream (using H.264, H.265, or other codecs).
Transmit: This digital stream is sent over an Ethernet cable. The camera receives power through this same cable (PoE).
Receive & Record: The NVR receives the stream from all cameras and writes it continuously or based on rules (motion) to the internal Surveillance Hard Drive.
View & Manage: You can view the live or recorded footage either locally on a connected monitor or remotely from anywhere in the world via a mobile app or computer client, which connects back to the NVR through your router.

By understanding the function of each of these core components, you move from just following steps to truly understanding why you’re doing them. This knowledge is power, enabling you to troubleshoot issues, plan your system effectively, and make informed decisions when expanding or upgrading your security setup.

2. Pre-Configuration Checklist: What You Need Before You Start

A successful NVR installation is all about preparation. Rushing in without the right tools and information is the fastest way to encounter frustration, delays, and potential damage to your equipment. This checklist is your essential guide to gathering everything you need before you open the boxes and start running cables.

Treat this like a pilot’s pre-flight checklist—methodical and non-negotiable.

Category 1: The Core System Components

(These items should be in your main purchase.)

Network Video Recorder (NVR): The main unit itself. Verify the model number and that it has enough channels (ports) for your current and future cameras (e.g., an 8-channel NVR for up to 8 cameras).
IP Security Cameras: Ensure you have the correct number and types (e.g., Dome, Bullet, PTZ) for your planned locations.
Surveillance-Grade Hard Drive (HDD): This is critical. Many NVRs are sold as a “base unit” without a hard drive. You must purchase this separately unless explicitly stated otherwise. Confirm it is a dedicated surveillance drive (e.g., WD Purple, Seagate SkyHawk). Check your NVR’s manual for the maximum supported capacity and drive type (e.g., SATA III).

Category 2: Networking & Cabling Essentials

(These items connect your system and power your cameras.)

Ethernet Cables (Cat5e or higher): You need one cable for each camera, long enough to run from the camera’s location to the NVR or PoE switch. Always get at least 10-15% more length than you measure to account for routing around obstacles, drops through walls, and connection slack. Cat6 cable is recommended for longer runs (over 150ft/45m) and for future-proofing with higher-resolution cameras.
A PoE Switch (If Required): This is only needed if your NVR does NOT have built-in PoE ports on the back. Check your NVR’s specifications. The switch must have enough ports for all your cameras and must provide sufficient PoE power (Watts) per port to meet your cameras’ requirements.
Network Patch Cables: Short Ethernet cables (1-3 ft / 0.3-1 m) to connect the NVR to your router and the PoE switch (if using one) to the router.
Router Access: Know how to access your router’s admin panel (usually an IP address like 192.168.1.1 on a sticker on the router) and have the login credentials handy. This is crucial for troubleshooting network issues or setting up manual port forwarding.

Category 3: Setup & Configuration Tools

(These items are necessary for the initial installation and setup.)

A Monitor or TV: With an available HDMI or VGA input. This is required for the initial setup. You do not need to leave it connected permanently.
Monitor Cable: The correct cable to connect your NVR to the monitor (e.g., HDMI cable, VGA cable).
USB Mouse: Nearly all NVR systems are configured using a mouse. It is far easier than using a remote control or on-screen buttons. Ensure it’s a standard USB-A mouse.
Screwdrivers & Tools:
- Phillips head and flat-head screwdrivers for mounting cameras and installing the HDD.
- A drill with appropriate bits for mounting cameras on walls or soffits.
- A LAN cable crimper and RJ45 connectors if you plan to cut and terminate your own Ethernet cables.
- A cable tester is highly recommended to verify your Ethernet cables before you run them and mount the cameras.
Power Strip/Surge Protector: You will have multiple devices to plug in (NVR, Monitor, PoE Switch). A surge protector is highly recommended to safeguard your investment from power spikes.

Category 4: Information & Documentation

(Your knowledge base for a smooth process.)

Default Login Credentials: Find the quick start guide or the sticker on the NVR itself. Write down the default:
- NVR Username: (Often admin)
- NVR Password: (Often admin, 12345, or blank)
- Default IP Address: (Often 192.168.1.108 or similar)
Manufacturer’s Mobile App Name: Know which app to download before you start. Common ones include:
- Hikvision: Hik-Connect / iVMS-4500
- Dahua / Amcrest: DMSS / Amcrest View
- Lorex: Lorex Cloud
- Reolink: Reolink App
- ANNKE: ANNKE Vision
A Notepad and Pen (or Digital Notes):This is vital. You will be recording:
- New passwords you create.
- IP addresses assigned to your cameras.
- Camera names you assign (e.g., “Front_Door,” “Backyard_Gate”).
- Any specific settings you change.
A Plan/Layout: A simple sketch of your property showing where you intend to place each camera. This will help you determine cable lengths and ensure complete coverage.

The “Ideal Setup” Workflow Before Configuration:

Unpack and Inventory: Lay out all components from the checklist. Verify you have everything.
Install the Hard Drive: If not pre-installed, carefully open the NVR case and install the surveillance HDD into the bay, connecting both the SATA and power cables securely. This is much easier to do on a workbench than after the NVR is mounted in a rack.
Pre-terminate and Test Cables: If you are making your own Ethernet cables, create them and use a cable tester to ensure all 8 wires are connected correctly.
Stage Your Equipment: Set up your NVR, monitor, and mouse in a temporary, comfortable workspace (like a dining table). This allows you to do the core software configuration without being cramped in a closet or attic.
Download the Mobile App: While the NVR is booting, download the correct manufacturer’s app to your phone.

By meticulously working through this pre-configuration checklist, you transform a potentially chaotic process into a structured, manageable project. You’ll have the confidence of knowing that when you power on the system, you have every tool and piece of information you need to succeed. Now, you’re ready to move on to the physical setup.

Step 1: The Physical Setup – Unboxing and Connecting Hardware

3.1. Positioning Your NVR

Place your NVR in a well-ventilated, secure, and cool location, like a utility closet or server rack. Ensure it’s close to a power outlet and your router.

3.2. Connecting Cameras to the Network

There are two primary ways to connect PoE cameras:

Method A: Direct to NVR’s PoE Ports (Most Common)
If your NVR has built-in PoE ports (usually on the back), simply connect each camera directly to these ports using Ethernet cables. This is the simplest “plug-and-play” method.
Method B: Via a Separate PoE Switch
If your NVR does not have PoE ports, or if your cameras are far from the NVR, you will need a PoE Switch.
1. Connect each camera to a port on the PoE Switch.
2. Connect the PoE Switch to your main router using an Ethernet cable.
3. Connect the NVR to the same router using another Ethernet cable.

3.3. Connecting to a Monitor and Mouse

Connect your monitor to the NVR’s HDMI or VGA port. Plug the USB mouse into one of the NVR’s USB ports.

3.4. Powering Everything Up

First, plug in the NVR and turn it on. You should see lights on the front panel. Then, power up your monitor. The cameras will receive power from the NVR’s PoE ports or the PoE switch and will boot up.

Step 2: Initial Boot and User Login

4.1. Default Credentials and The First Login

After booting, you will see a login screen. Consult the manufacturer’s manual for the default username and password. Common defaults are:

Username: admin
Password: admin or 12345 or leave it blank.

4.2. The Crucial Step: Changing Default Passwords!

This is the most critical security step. Using default passwords makes your system extremely vulnerable to hackers.

Navigate to Settings > User Management > Admin.
Change the password to a strong, unique one. Use a combination of letters, numbers, and symbols. Write it down and store it securely.

Step 3: The Core Configuration – NVR Setup Wizard

Most NVRs will launch a setup wizard on the first login. Follow these steps:

5.1. Setting the Date, Time, and Location

Ensure the NVR’s clock is accurate. This is vital for evidence, as it timestamps all recordings. You can usually set it to sync with an NTP (Network Time Protocol) server.

5.2. Configuring Your Network Settings

For basic remote viewing, leaving the NVR on DHCP (where your router automatically assigns it an IP address) is fine. For a more stable, professional setup, it’s better to assign a Static IP Address.

Go to Settings > Network > TCP/IP.
Note the IP address assigned by DHCP, then switch to “Static.”
Use the same IP, Subnet Mask, and Gateway provided by DHCP, or assign one outside your router’s DHCP range (e.g., if your router gives out 192.168.1.100-200, set your NVR to 192.168.1.50).

Step 4: Adding and Managing Your IP Cameras

6.1. Automatic Camera Detection (Plug-and-Play)

If you connected cameras directly to the NVR’s PoE ports, they should be detected automatically. Go to Camera Management or a similar menu. You should see a list of all connected cameras, likely with a default IP address like 192.168.1.x. They should be online and streaming.

6.2. Manual Camera Addition

If cameras are on a different network (e.g., via a separate PoE switch) and aren’t auto-detected, you may need to add them manually. You’ll need to know the camera’s IP address, username, and password to add it to the NVR.

6.3. Naming Your Cameras

Don’t stick with “Camera 001.” Give each camera a descriptive name like “Front_Door,” “Backyard,” or “Reception_Desk.” This makes it much easier to manage and review footage.

Step 5: Configuring Recording Settings – The Brains of Your System

This is where you define how and when your system records.

7.1. Continuous vs. Motion-Activated Recording

Continuous (24/7): Records non-stop. Ensures you never miss a moment but uses storage quickly.
Motion-Activated: Records only when movement is detected. Saves significant storage space and makes playback easier.

7.2. Setting Up Motion Detection

Go to Recording Settings > Motion Detection.

Area: Select the areas within the camera’s view where you want to detect motion. For example, you can exclude a busy street and only monitor your gate.
Sensitivity: Adjust this slider. Too high, and passing leaves will trigger it. Too low, and a person might be missed. Start in the middle and adjust based on your environment.

7.3. Configuring Recording Schedule

You can create a timetable. For example, you might set 24/7 recording for a cash register but only motion-activated recording for a parking lot during night hours.

7.4. Understanding Video Quality

You can often adjust:

Resolution: Higher (e.g., 4K, 1080p) means clearer video but larger file sizes.
Frame Rate (FPS): Higher FPS (e.g., 30) gives smoother video. 15-20 FPS is often sufficient for security.
Bitrate: Higher bitrate means better quality but, again, more storage usage. “Variable” bitrate is often a good compromise.

7.5. Managing Storage

Go to Storage Management.

Calculate Storage: Use online calculators to estimate how many days of recording you’ll get based on the number of cameras, resolution, frame rate, and recording type.
Overwrite Settings: Ensure “Overwrite” is enabled. This means when the hard drive is full, the oldest footage will be automatically deleted to make space for new recordings.

Step 6: Enabling Remote Viewing – Watch Your Property from Anywhere

8.1. The P2P Method (Easiest)

This is the simplest way, offered by most modern NVRs (Hikvision, Dahua, Reolink, etc.).

Go to the Network > P2P or Cloud menu.
Note the QR code or a unique ID number.
Download the manufacturer’s mobile app (e.g., iVMS-4500, DMSS, Reolink App).
In the app, scan the QR code or enter the ID. The app will automatically connect to your NVR. No router configuration is needed!

8.2. The Port Forwarding Method (Manual)

Advanced: Incorrect port forwarding can create security risks.

In the NVR’s network settings, note the HTTP Port (e.g., 80) and Server Port (e.g., 8000).
Log in to your router’s admin panel.
Find the “Port Forwarding” or “Virtual Server” section.
Create rules to forward the NVR’s ports to the NVR’s local IP address.
To connect, you would use your home’s public IP address (e.g., http://your-public-ip:80).

Step 7: Advanced Configuration for Enhanced Security

9.1. Setting Up Alerts and Notifications

Go to Event > Notification.

Linkage Method: Select what happens on a motion event.
- Push Notification: Send an alert to your phone.
- Email Notification: Send a snapshot to your email.
- Audible Alarm: Trigger a buzzer on the NVR.
- Record: Ensure it starts recording.

9.2. Configuring HDD Overwrite Rules

As mentioned in 7.5, ensure this is enabled for continuous operation.

9.3. Multi-User Access and Permissions

Create separate user accounts for family members or employees with limited permissions (e.g., “View Only” without the ability to delete footage or change settings).

9.4. System Health Monitoring

Regularly check System Information or Maintenance to see HDD health, network status, and system logs.

Troubleshooting Common NVR Configuration Issues, How to Configure CCTV NVR System

Camera Not Found? Check physical connections. Ensure the camera is powered. Verify the camera’s IP address is on the same subnet as the NVR.
Can’t Login Remotely? For P2P, ensure the NVR is connected to the internet. For port forwarding, check your router’s firewall and that your public IP hasn’t changed (consider a DDNS service).
No Hard Drive Detected? Ensure the SATA and power cables inside the NVR are securely connected to the HDD.
Poor Video Quality? Check the camera’s resolution and bitrate settings. Ensure your network bandwidth can handle the video stream.
