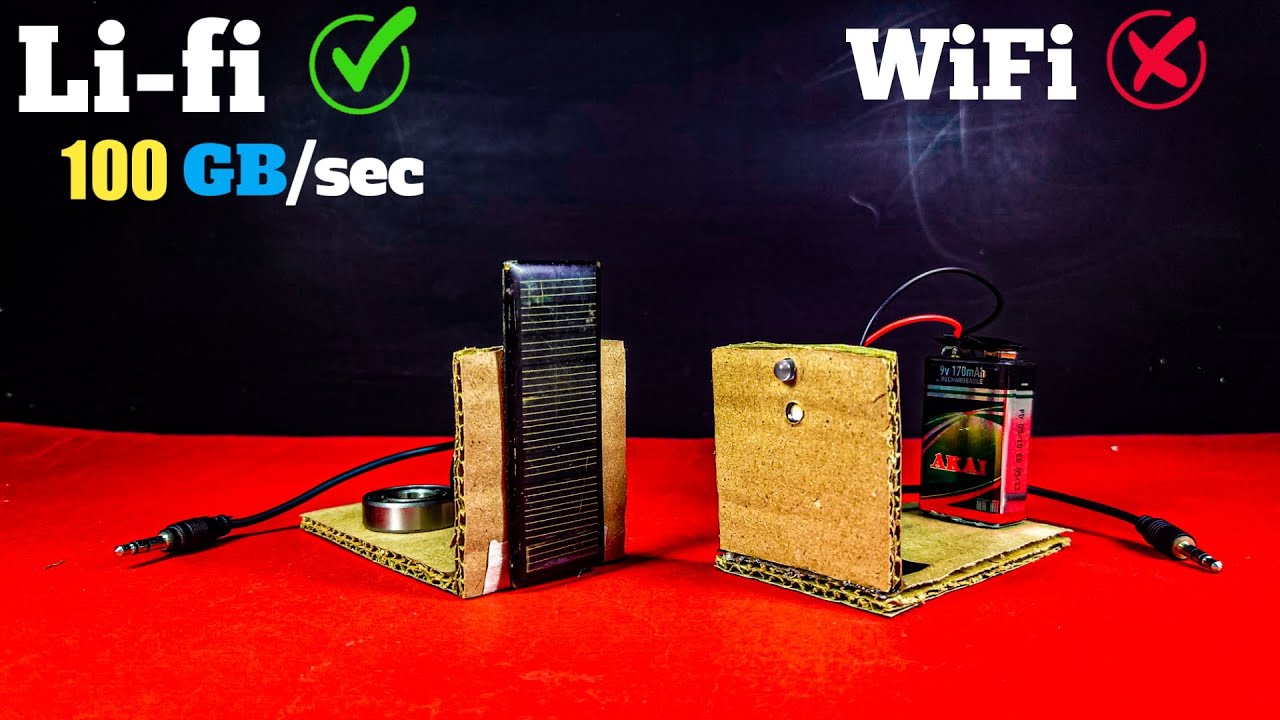

In the ever-evolving landscape of wireless communication, Li-Fi System stands out as a revolutionary alternative to traditional Wi-Fi. Based on visible light communication (VLC), Li-Fi offers high-speed data transfer using LED light instead of radio waves.
If you’re a tech enthusiast, student, or hobbyist looking to explore this technology hands-on, you’re in the right place. This guide will walk you through how to build a Li-Fi system at home or in a school lab using affordable components.
Whether you’re working on a Li-Fi project for students, experimenting with Li-Fi DIY kits, or trying to create your own Li-Fi home system, this article covers every step in detail.
🔍 What is Li-Fi System?
Li-Fi is a form of wireless communication that uses light to transmit data. The core concept is simple:
- Data is encoded into LED light (via ON/OFF switching or modulation)
- A photodiode (light sensor) detects this modulation and converts it back into data
This allows data transfer at extremely high speeds—without electromagnetic interference or security risks associated with RF.
🎓 Why Build a DIY Li-Fi System?
- ✅ Affordable: Basic Li-Fi kits cost under ₹1000 ($15)
- ✅ Educational: Ideal for students in electronics, physics, or telecom courses
- ✅ Future-ready: Prepares you for upcoming wireless careers
- ✅ Fun & Impressive: Great for science fairs, workshops, and tech clubs
🧰 Components Required for a Li-Fi System
Here’s a breakdown of all the hardware and tools you’ll need for a basic DIY Li-Fi setup:
| Component | Quantity | Purpose |
|---|---|---|
| White LED (5mm or high power) | 1 | Transmitter light source |
| NPN Transistor (e.g., BC547) | 1 | Amplification for LED |
| 3.5mm Audio Jack (Male-to-Male) | 1 | Input/output for signal (laptop/mobile) |
| 1KΩ Resistor | 1 | Controls current to LED |
| 9V Battery with clip | 1 | Power source |
| Breadboard or Perfboard | 1 | Circuit assembly |
| Wires and jumpers | As needed | Connections |
| Photodiode or Solar Cell | 1 | Receiver for light signals |
| Audio Amplifier (LM386 Module or external) | 1 | Amplifies received signal |
| Speaker or Headphones | 1 | For output testing |
✅ Optional:
- Arduino board (for digital modulation projects)
- IR LEDs (for invisible spectrum testing)
- Oscilloscope or audio analyzer (for signal testing)
📐 Li-Fi System Circuit Diagram Overview
You’ll be building two main modules:
- Transmitter Circuit – sends data through light using an LED.
- Receiver Circuit – captures light signals via a photodiode and converts them into audio/data output.
🔸 Li-Fi System Transmitter Circuit Design
Steps:
- Connect 3.5mm audio jack to your mobile/laptop’s headphone output.
- Feed one channel to a 1KΩ resistor, then to the base of BC547 transistor.
- Collector connects to the +ve terminal of the LED, emitter to ground.
- Power the circuit using a 9V battery.
- When audio plays, the LED blinks rapidly (invisible to eye), modulating the light.
🔸 Li-Fi System Receiver Circuit Design
Steps:
- Place the photodiode or solar cell facing the LED.
- Connect it to the input of an LM386 audio amplifier module.
- Connect the amplifier output to a speaker or earphones.
- As light pulses hit the diode, it generates a voltage—converted into audio signals.
🛠️ Li-Fi System Step-by-Step Assembly Guide
🔧 1. Prepare Your Components
- Test your LED and photodiode using a multimeter.
- Strip your wires, connect jumper cables, and set up your breadboard.
🔧 2. Build the Transmitter
- Assemble the audio-to-transistor-LED circuit.
- Use mobile audio output and play a continuous tone or music.
🔧 3. Build the Receiver
- Position the photodiode directly in line-of-sight of the LED.
- Connect it to the amplifier input.
- Plug in your earphones and listen for sound reproduction.
🔧 4. Testing the System
- Play a song or voice recording.
- You should hear faint audio in your speaker.
- Move the receiver further and test signal strength.
- Block the light—notice the audio stops, proving light is the medium.
💡 Tips for Better Performance
- Use high-brightness white LEDs for a stronger signal.
- Avoid ambient light sources; use a dark room if possible.
- Use a fresnel lens or mirror to focus the LED beam.
- Shield the photodiode to prevent interference from room lights.
- Improve data clarity with modulation techniques (PWM, OOK, etc.)
📈 Going Beyond Audio: Transmitting Data via Li-Fi
Once you succeed with audio transmission, you can scale up:
➤ Text/Serial Data
Use Arduino Uno with UART communication to blink LEDs in binary form and receive serial data via a photodiode+ADC system.
➤ Li-Fi Internet
Advanced Li-Fi routers use modulated light signals to send full-scale data (like Wi-Fi). For home experimentation, you’ll need:
- High-speed photodiodes
- High-frequency PWM drivers
- Optical filters
- Networking interfaces (Ethernet to LED modulators)
This setup is complex and costly, but basic audio-data transmission is a good foundation.
🧪 Real-World Educational Li-Fi Kits (2025)
If you don’t want to build from scratch, consider these Li-Fi educational kits available in 2025:
1. KidzRobotics Li-Fi STEM Kit
- Ideal for school projects (Grades 9–12)
- Includes breadboard, LED, photodiode, audio amp
2. Mithu Tech DIY Li-Fi Kit (India)
- Pre-soldered modules for plug-n-play experiments
- Available at MithuTech.com (Sample only)
3. LiFiComm University Lab Kit
- Designed for undergraduate electronics & telecommunication labs
- Includes spectrum analyzer software + modulation board
🧠 Applications for Student Projects
- 📡 Wireless music transmission using light
- 📱 Android-to-Android audio chat via Li-Fi
- 🧪 Arduino-based text messaging over Li-Fi
- 🚀 Light-controlled robot (Li-Fi RC car)
- 🏥 Hospital communication system (safe for ICUs)
📚 Academic Value & Career Impact
Creating a Li-Fi DIY project helps in:
- Understanding optical modulation
- Gaining practical skills in electronics
- Learning about emerging wireless standards
- Building a portfolio for engineering admissions or job interviews
📊 Pros and Cons of a DIY Li-Fi System
| Pros | Cons |
|---|---|
| Low cost | Limited range (~1-2 meters) |
| Educational | Affected by ambient light |
| Safe for RF-sensitive zones | Not internet-capable without advanced hardware |
| Fun & hands-on | Requires line-of-sight |
📦 Final Thoughts: Light Up Your Learning
Li-Fi isn’t just the future—it’s a brilliant hands-on learning tool for today. By building your own Li-Fi home system, you gain real-world experience in cutting-edge communication while having fun in the process.
Whether you’re a student looking to stand out, a teacher preparing a classroom lab, or a tech lover experimenting at home, this guide gives you everything you need to light your way into wireless innovation.
